Lab Week 5: Regression Discontinuity Designs (RDD)

Evaluating Forest Conservation with RDD

Author

EDS 241 / ESM 244

Published

February 6, 2026

RDD Review

Regression Discontinuity Design is a natural experimental method used to estimate the causal effects of a treatment by exploiting a “cutoff” or “threshold” in an assignment variable.

  • The running variable (\(X\)): A continuous measure used for assignment

  • The Cutoff (\(c\)): The threshold rule

  • Treatment rule (\(D\)): What changes at the cutoff (policy / intervention)

Study Review: “Environmental Regulation and Economic Performance: Evidence from Forest Conservation in Mexico”

This lab replicates the analysis from Neal (2024), which examines how effective government-protected forest areas are at preventing deforestation globally from 2000-2022. Using satellite data covering 7.4 billion forest observations and a regression discontinuity design, the study addresses a critical policy question:

Does legal protection actually prevent forests from being cleared?

We will use simulated data to approximate the study estimates. The results should not be interpreted literally as simulated data necessarily includes assumptions that omit complexity found in the original study data.

The Selection Bias Problem

Governments don’t randomly assign protection. They typically protect forests that are already less likely to be cleared—remote areas, steep terrain, or poor soil quality. Simply comparing deforestation rates inside versus outside protected areas would be misleading.

The RDD Solution

By comparing forests immediately on either side of protected area boundaries (within ~1.5km), the study isolates the causal effect of legal protection. Two forests 50 meters apart on opposite sides of a boundary make for a good comparison except for protection status.

The Findings

Protected areas are only about 30% effective on average at preventing deforestation. While some nations like New Zealand (89% effective), Finland (77%), and Canada (63%) show high effectiveness, many countries with critical biodiversity have relatively low protection efficacy: Indonesia (11%), the Democratic Republic of Congo (4%), Bolivia (4%), and Venezuela (0%).

Study Replication

Using Simulated_Deforestation_Data6.csv, we will replicate Neal’s approach.

0. Load packages + study data

library(tidyverse)
library(rdrobust)
library(here)
library(jtools)
library(janitor)
library(patchwork)
library(gt)

Read in the simulated data

sim_data <- read_csv(here("week5", "Simulated_Deforestation_Data6.csv"), show_col_types = FALSE)

1. Create variable description table for key variables in the analysis

Variable Descriptions (Treatment, Outcome, and RDD Covariates)
Replication of Neal (2024) Forest Protection Study
Variable Name Definition
protected (Treatment) Site is inside a Protected Area (1 = inside, 0 = outside)
deforest (Outcome) Annual rate of forest loss (0 to 1) detected via satellite imagery.
distance (Running Variable) The shortest distance (in km) from the forest pixel to the nearest protected area boundary. Negative = Outside, Positive = Inside.
slope Steepness of the terrain.
road_proximity Distance to the nearest road (km).
water_proximity Distance to the nearest water source (km).
soil_nutrition Categorical scale (0-2) of soil quality for agriculture.
country The nation where the forest plot is located.
slope_cat Binary indicator for high slope vs. low slope for stratified analysis.
road_cat Binary indicator for proximity to roads (Near vs. Far).
soil_cat Binary indicator for high fertility vs. low fertility soil.

2. Visualize the discontinuity using binned means (bin size = 1)

data_binned <- sim_data %>%
  mutate(distance_bin = cut(distance, breaks = seq(-20, 20, by = 1), include.lowest = TRUE)) %>%
  group_by(distance_bin, protected) %>%
  summarize(
    avg_distance = mean(distance), # Averaged binned distance
    avg_deforest = mean(deforest),
    .groups = "drop"
  )

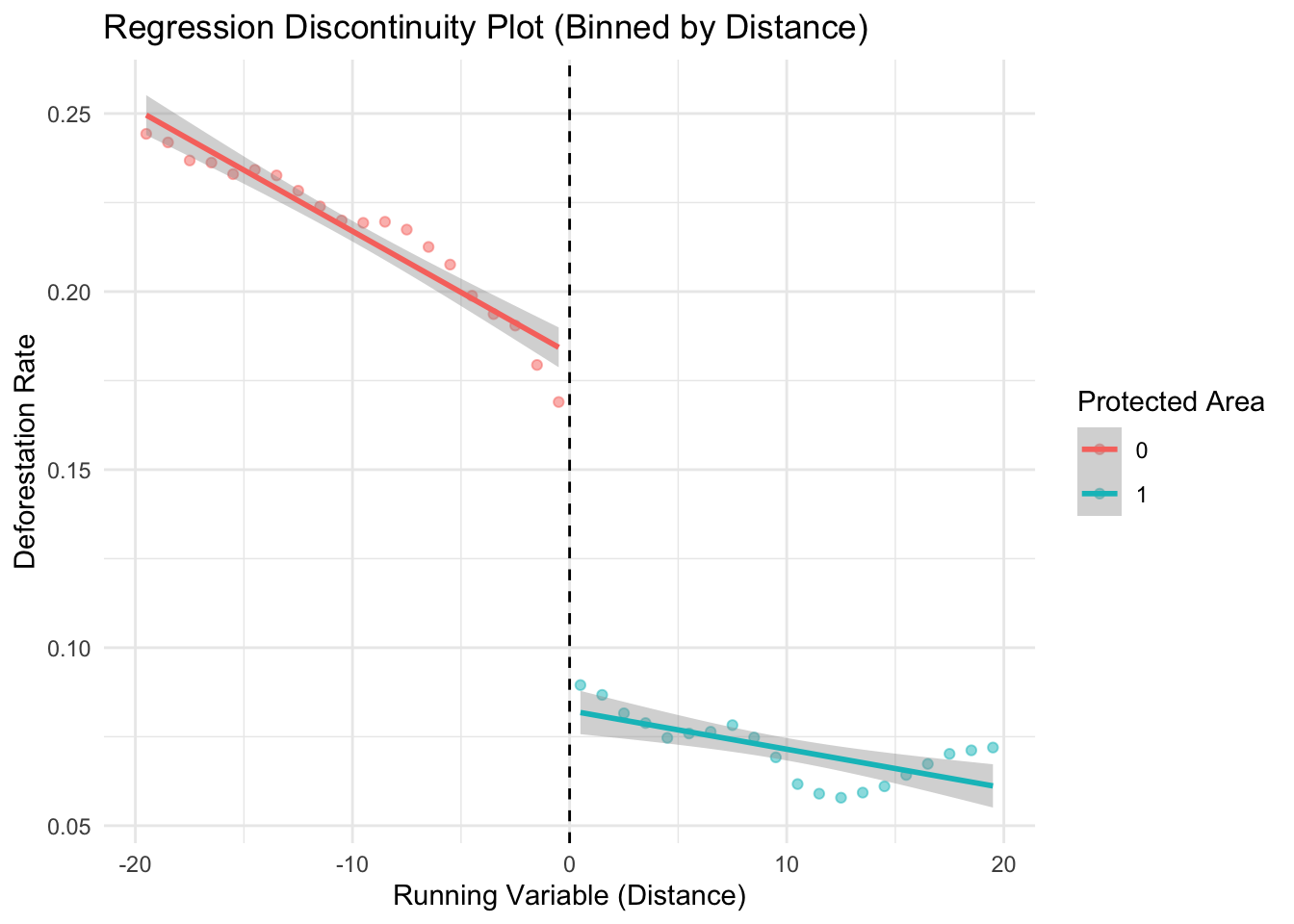

3. Plot using binned data

rdd_lm <- ggplot(data_binned, aes(x = avg_distance, y = avg_deforest, color = as.factor(protected))) +
  geom_point(alpha = 0.5) +
  geom_smooth(method = "lm", aes(group = protected)) +
  geom_vline(xintercept = 0, linetype = "dashed", color = "black") +
  labs(title = "Regression Discontinuity Plot (Binned by Distance)",
       x = "Running Variable (Distance)", y = "Deforestation Rate",
       color = "Protected Area") +
  theme_minimal()


rdd_lm

TipComprehension Check

Interpret the plot above. What are the two lines representing and what do their trends reveal? Explain what the positive and negative values mean here (refer to the variable description for distance if you are unsure!).

What would it mean if there were NO discontinuity at distance = 0? How would that change your interpretation of protected area effectiveness?

4. Run RDD Analysis using OLS

rdd_ols <- lm(
    deforest ~  # outcome
    protected + # treatment effect
    distance +  # running variable
    protected*distance + # allows slope to vary
    slope_cat + road_cat + water_cat + soil_cat, # <<< CONTROLS
              data = sim_data)

# Display summary of regression results
summ(rdd_ols, digits = 3,
     model.info = FALSE, model.fit = FALSE)
Est. S.E. t val. p
(Intercept) 0.194 0.001 266.385 0.000
protected -0.100 0.000 -232.183 0.000
distance -0.003 0.000 -129.687 0.000
slope_cat -0.013 0.000 -61.804 0.000
road_cat -0.009 0.000 -38.902 0.000
water_cat -0.006 0.001 -9.466 0.000
soil_cat 0.009 0.000 39.823 0.000
protected:distance 0.002 0.000 62.829 0.000
Standard errors: OLS
TipComprehension Check

Based on the regression results, what is the estimated causal effect of protected area status on deforestation? Does this match what you see in the plot? What does the interaction coefficient represent?

4. Estimate & Visualize RDD using {rdrobust}

RDD Robust Estimation Method (local polynomial regression):

Local polynomial regression is a method used to give more weight to observations near a specific point— in this case, the RDD threshold. Instead of using OLS, it fits separate non-linear regressions on either side of the cutoff using a subset of the data near the cutoff (i.e., bandwidth).

Interpreting output:

Default estimation options used by the rdrobust() function:

Bandwidth Optimization (BW type: mserd): Bandwidth is optimized to balance accuracy & bias.

Bandwidth Estimate (BW est. (h) = 2.207): The estimated range around the cutoff used to subset the data to estimate the treatment effect.

Kernel (Triangular): Gives higher weight to data points close to the cutoff.

Variance Estimation (VCE method: NN): Instead of assuming equal variance across all observations, the error estimates are adjusted to account for variability near the cutoff.

Take a random sample (To adjust for memory-limit & speed)

global_samp <- sim_data %>%
     sample_n(size = nrow(sim_data) * 1.0) # <<< e.g., .5 for 50%

5. Estimate Global RDD

global_rdd <- rdrobust(
  y = global_samp$deforest, # Outcome
  x = global_samp$distance, # Running variable
  covs = global_samp %>% select(slope_cat, road_cat, water_cat, soil_cat), # Controls
  c = 0, # Cutoff at 0 (protected area boundary)
  kernel = "triangular"
)

# Print summary of results
summary(global_rdd)
Covariate-adjusted Sharp RD estimates using local polynomial regression.

Number of Obs.               600000
BW type                       mserd
Kernel                   Triangular
VCE method                       NN

Number of Obs.               299889       300111
Eff. Number of Obs.           32971        33065
Order est. (p)                    1            1
Order bias  (q)                   2            2
BW est. (h)                   2.207        2.207
BW bias (b)                   4.851        4.851
rho (h/b)                     0.455        0.455
Unique Obs.                  299889       300111

=====================================================================
                   Point    Robust Inference
                Estimate         z     P>|z|      [ 95% C.I. ]
---------------------------------------------------------------------
     RD Effect    -0.073   -58.640     0.000    [-0.075 , -0.070]
=====================================================================
TipComprehension Check

The RD Effect here is -0.073, while in the previous regression table the protected coefficient was -0.100. Why are they similar but not exactly the same? Which one should we trust more?

What advantages does this ‘local polynomial regression’ approach have over the simple linear regression we saw before?

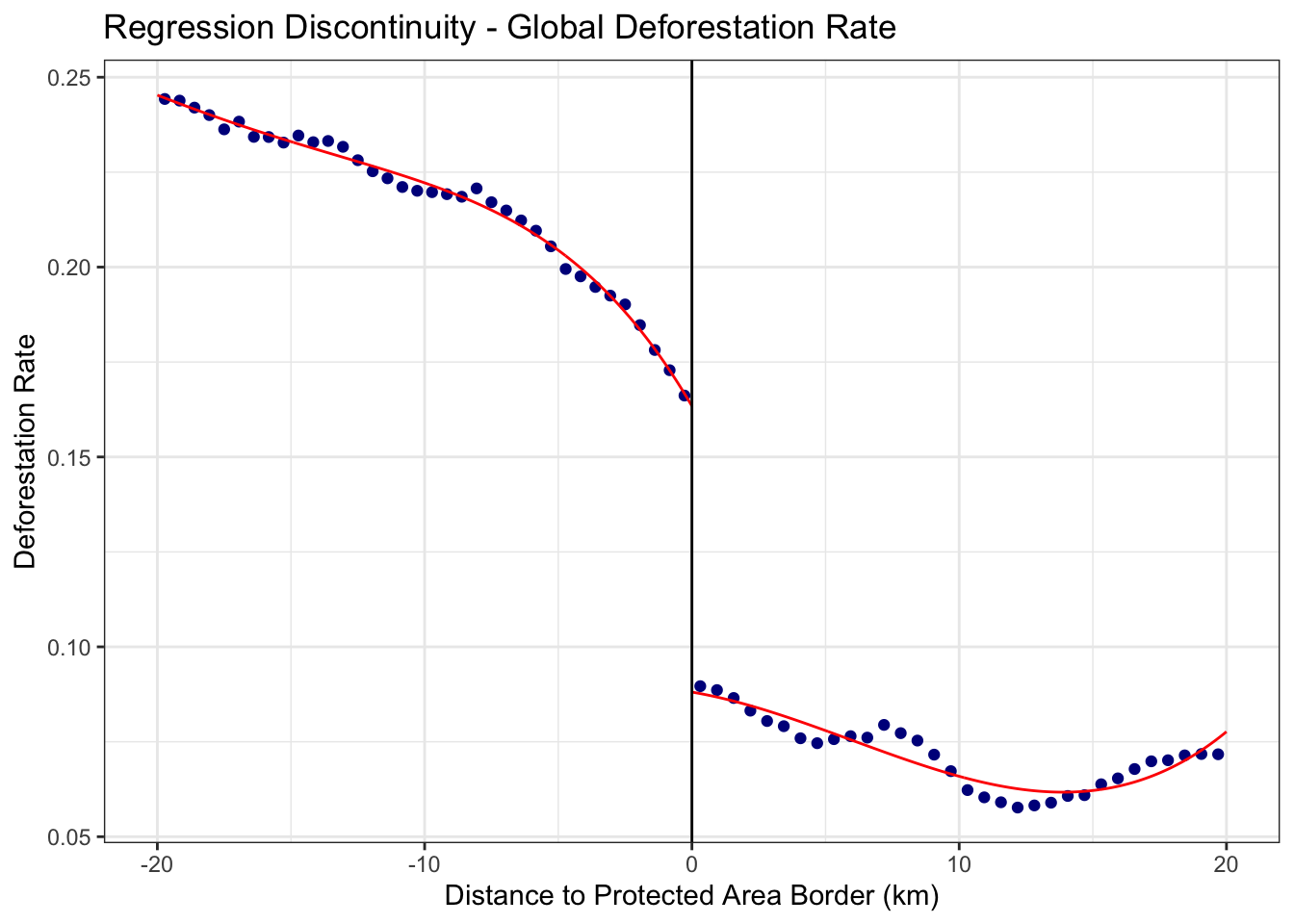

6. Visualize the RDD discontinuity using rdplot():

This plot presents the local polynomial regression curves fit on either side of the cutoff.

rdd_poly <- rdplot(
  y = sim_data$deforest,
  x = sim_data$distance,
  c = 0,
  binselect = "es",
  title = "Regression Discontinuity - Global Deforestation Rate",
  x.label = "Distance to Protected Area Border (km)",
  y.label = "Deforestation Rate"
)

rdd_poly
Call: rdplot

Number of Obs.               600000
Kernel                      Uniform

Number of Obs.               299889          300111
Eff. Number of Obs.          299889          300111
Order poly. fit (p)               4               4
BW poly. fit (h)             20.000          20.000
Number of bins scale          1.000           1.000

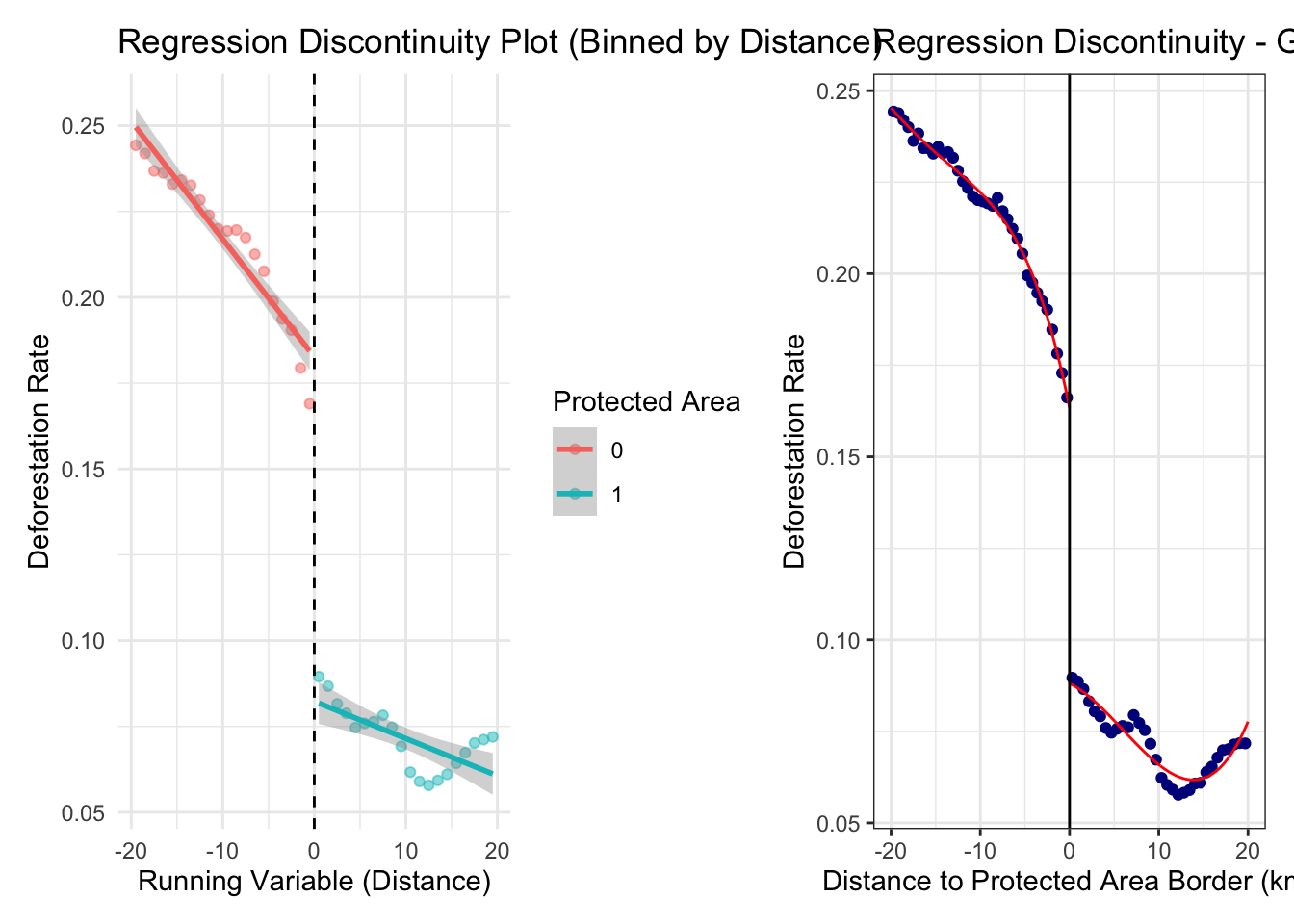

Let’s look at our results side by side.

rdd_lm + rdd_poly$rdplot

TipComprehension Check

Compare the two plots. What key differences do you notice between the left plot (binned linear) and the right plot (local polynomial)? Which one better captures the pattern in the data?

7. Estimate separate RDD models by country using a loop function 🔄

TipWhat is an iterator or loop function?

lapply() loops across the input levels for country and applies the function run_country_rdd

run_country_rdd <- function(country_name) {
  df_country <- sim_data %>% filter(country == country_name)

    rdd_model <- rdrobust(
      y = df_country$deforest,
      x = df_country$distance,
      covs = df_country %>% select(slope_cat, road_cat, water_cat, soil_cat),
      c = 0,
      p = 1,
      kernel = "triangular"
    )
}

# Apply the function to all countries
rdd_6country <- lapply(unique(sim_data$country), run_country_rdd)

# Print summary for `DRC`
summary(rdd_6country[[3]])
Covariate-adjusted Sharp RD estimates using local polynomial regression.

Number of Obs.               100000
BW type                       mserd
Kernel                   Triangular
VCE method                       NN

Number of Obs.                50031        49969
Eff. Number of Obs.            6693         6733
Order est. (p)                    1            1
Order bias  (q)                   2            2
BW est. (h)                   2.667        2.667
BW bias (b)                   6.075        6.075
rho (h/b)                     0.439        0.439
Unique Obs.                   50031        49969

=====================================================================
                   Point    Robust Inference
                Estimate         z     P>|z|      [ 95% C.I. ]
---------------------------------------------------------------------
     RD Effect     0.001     1.460     0.144    [-0.001 , 0.004]
=====================================================================

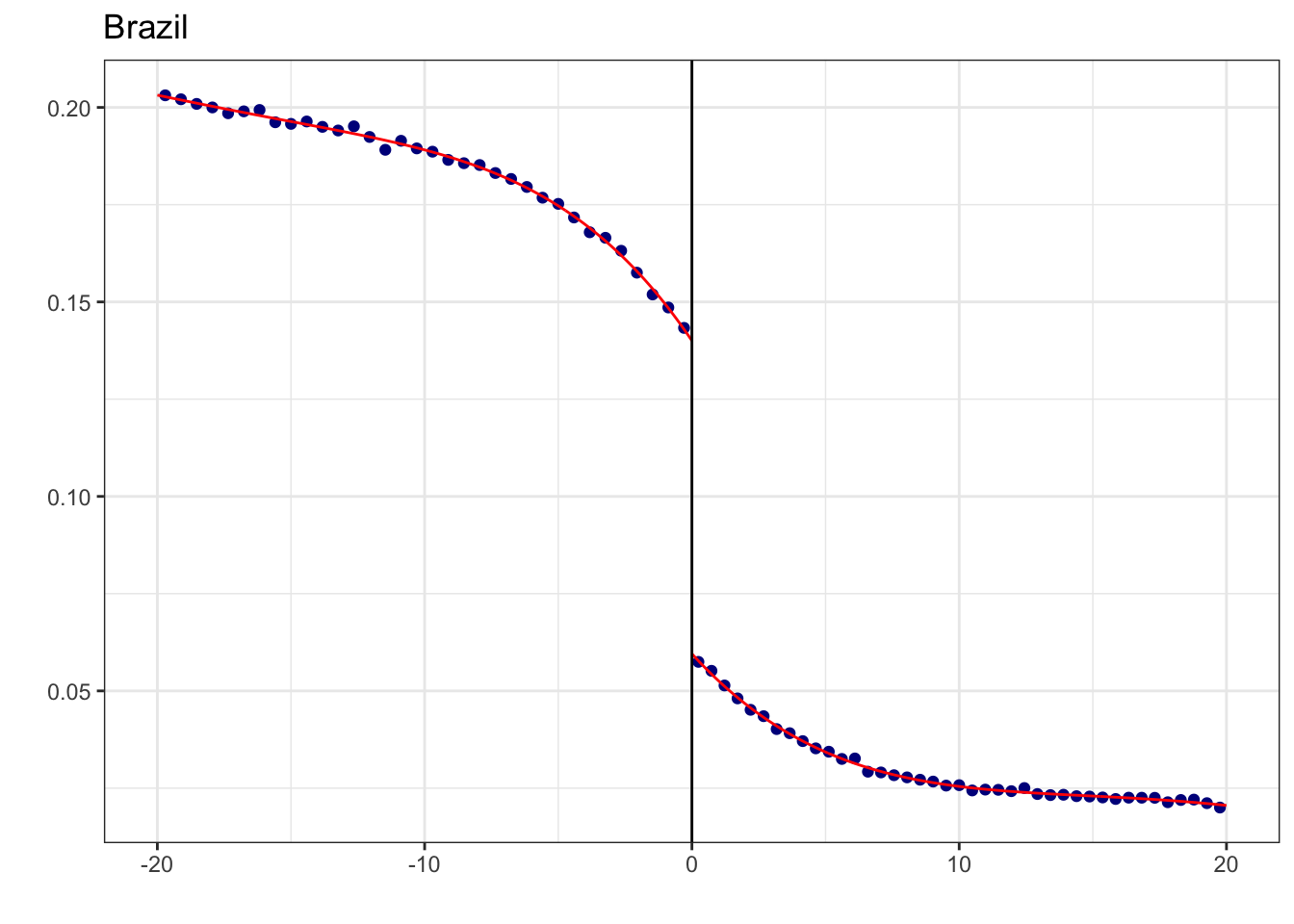

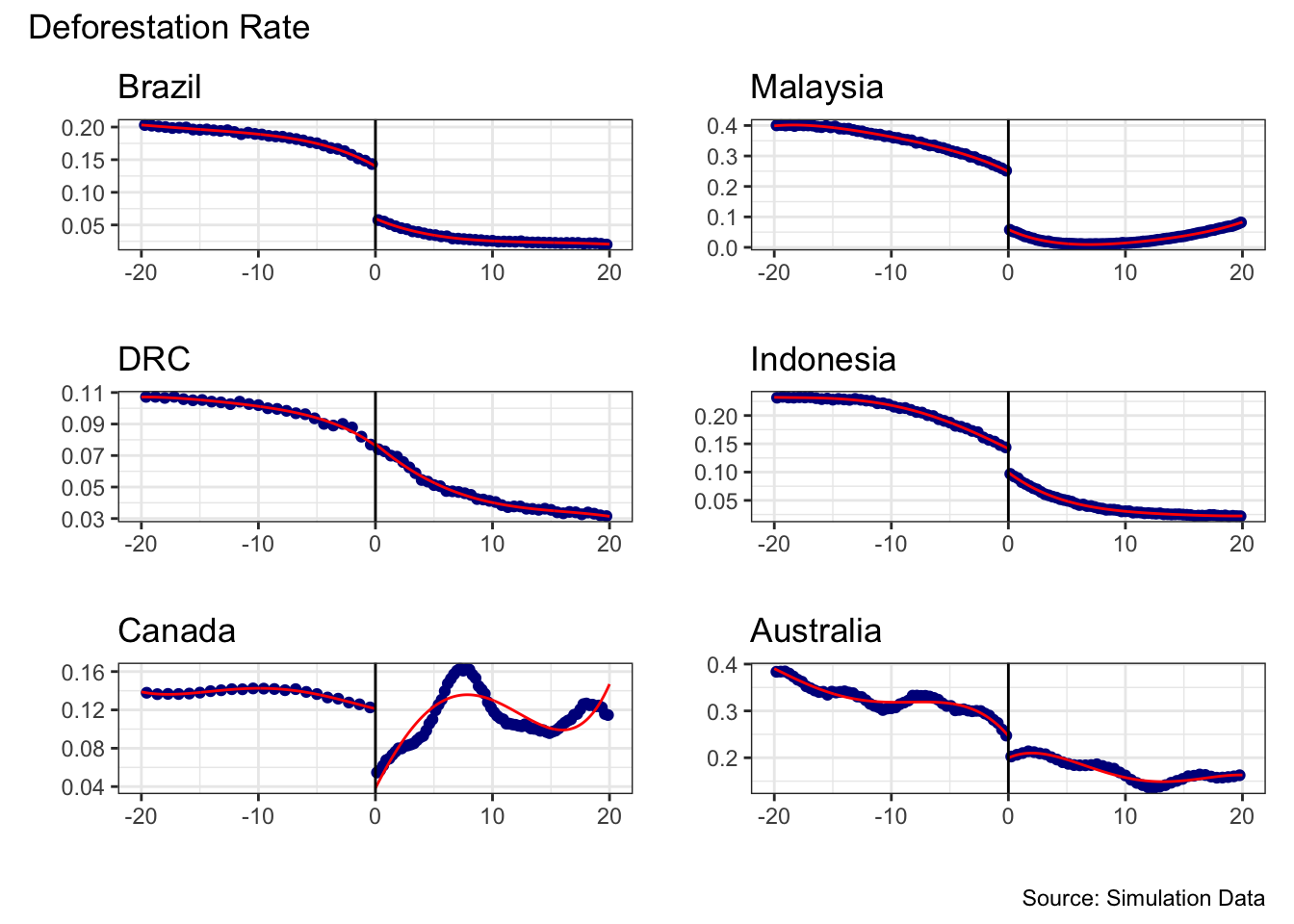

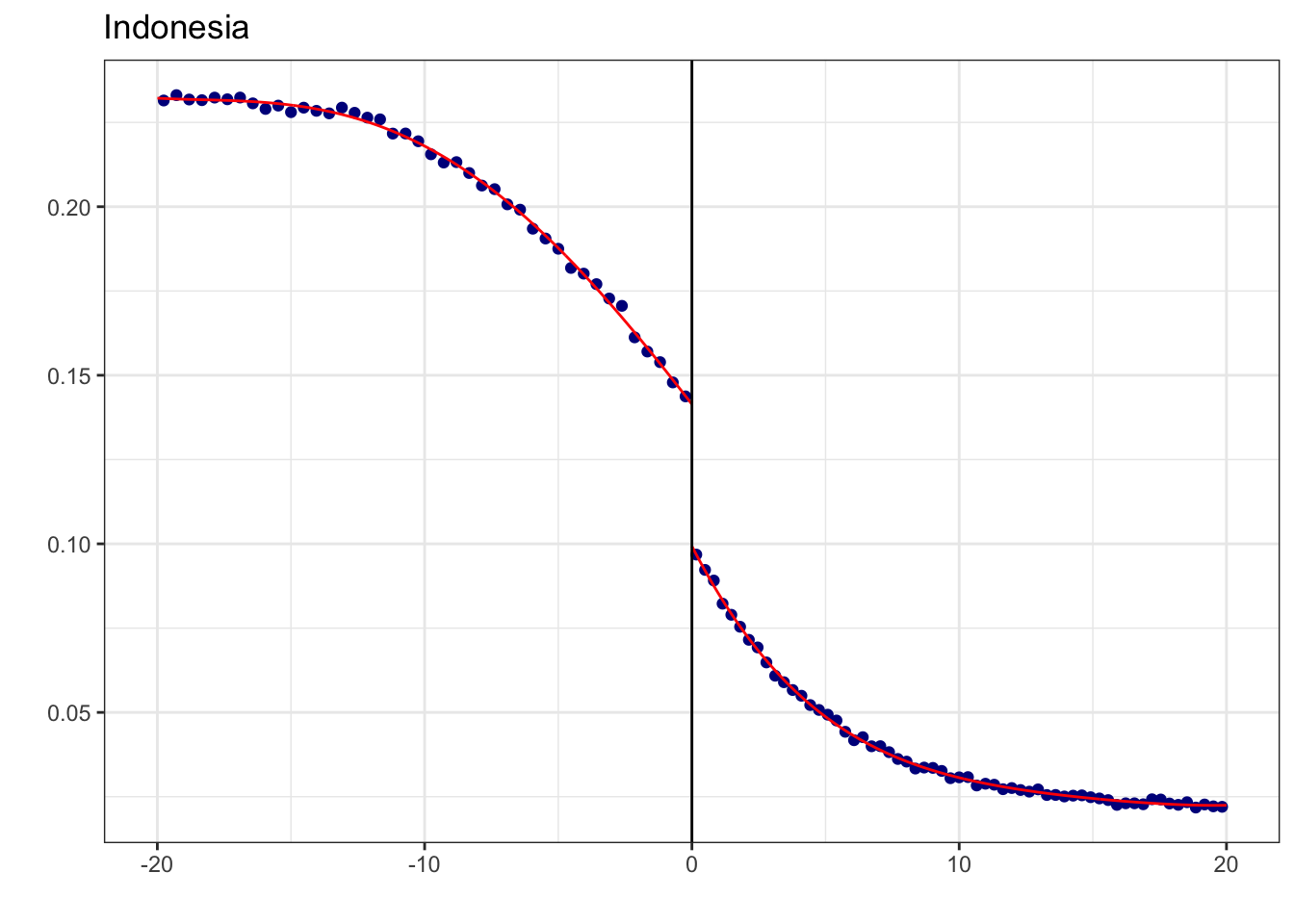

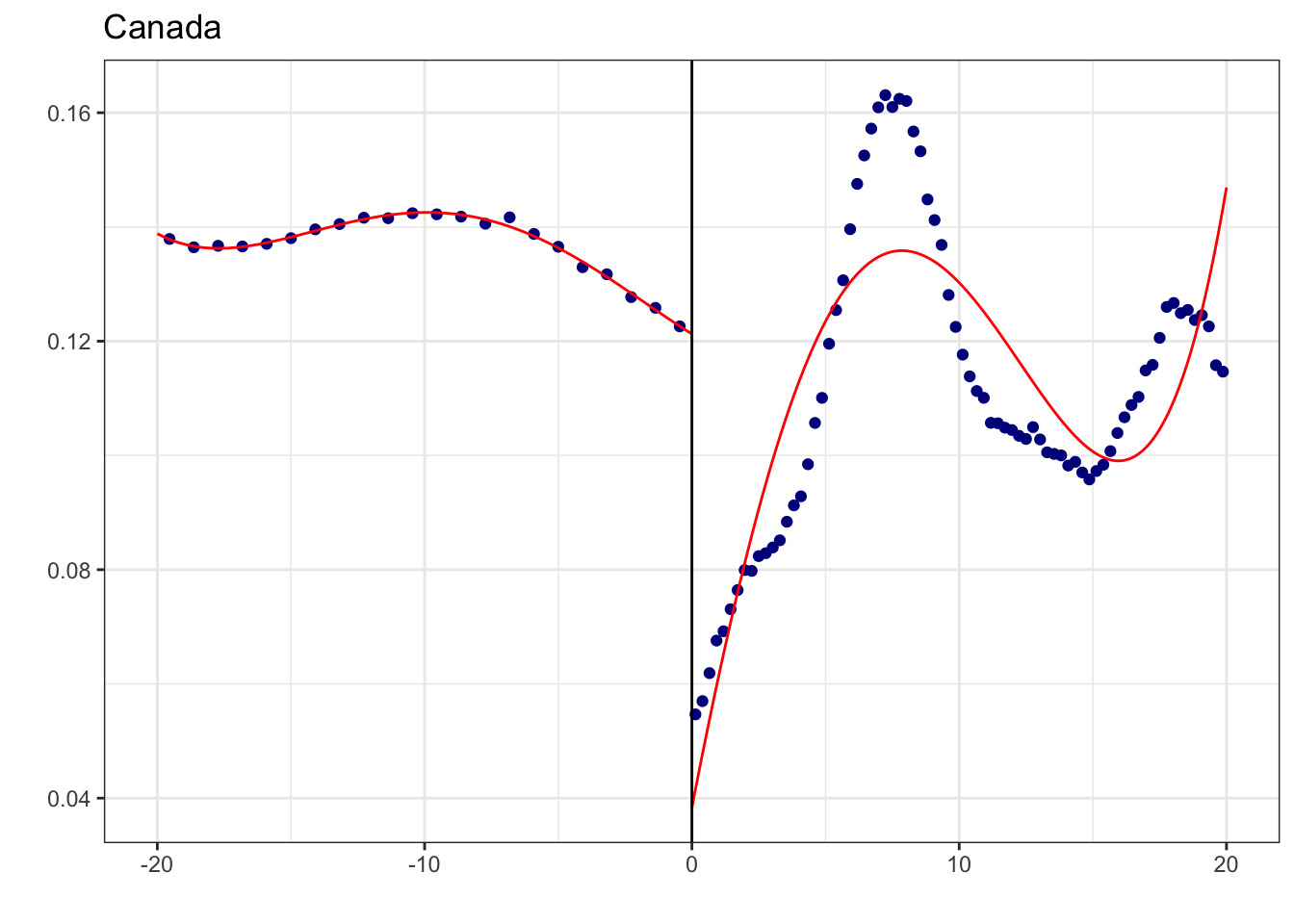

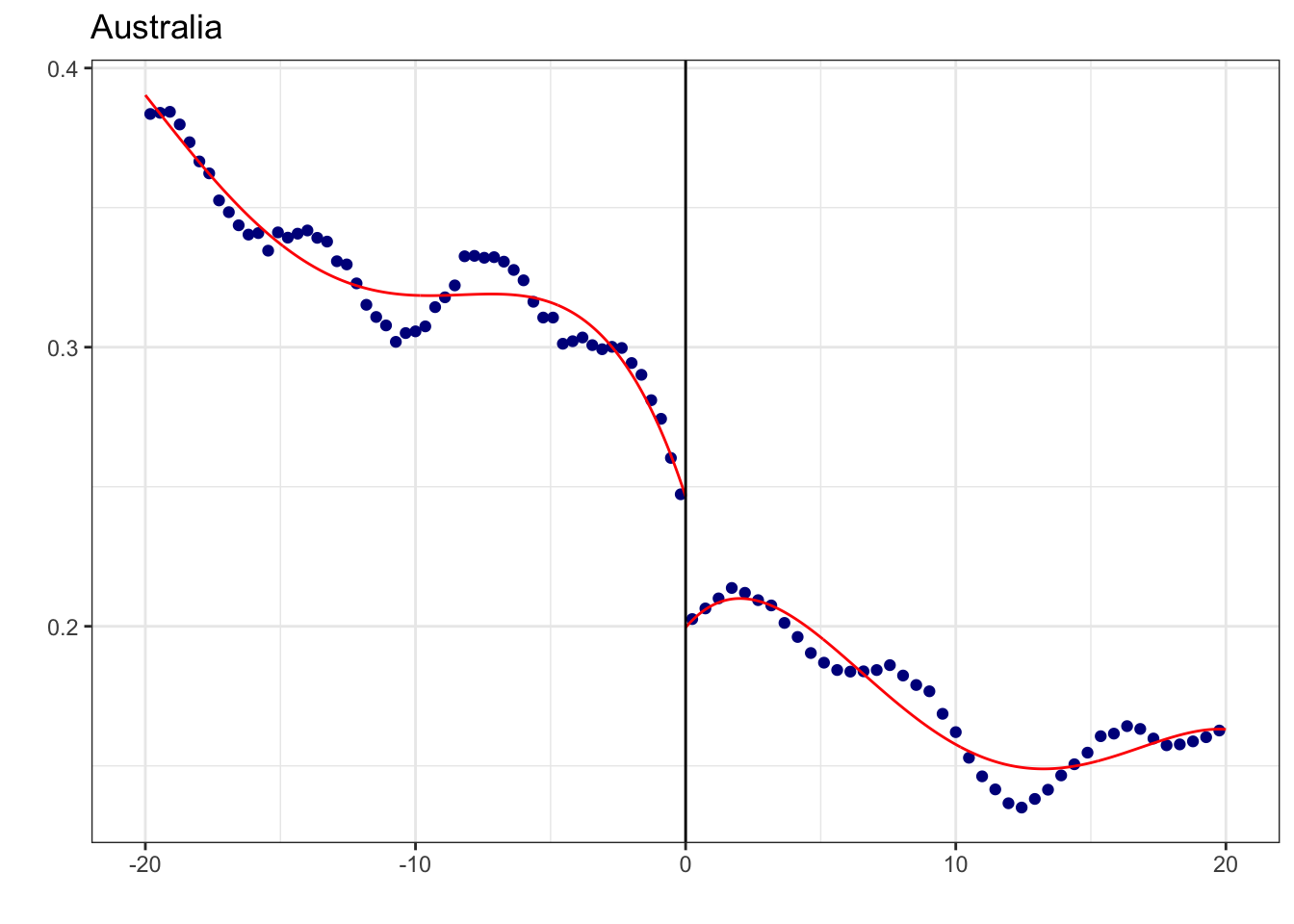

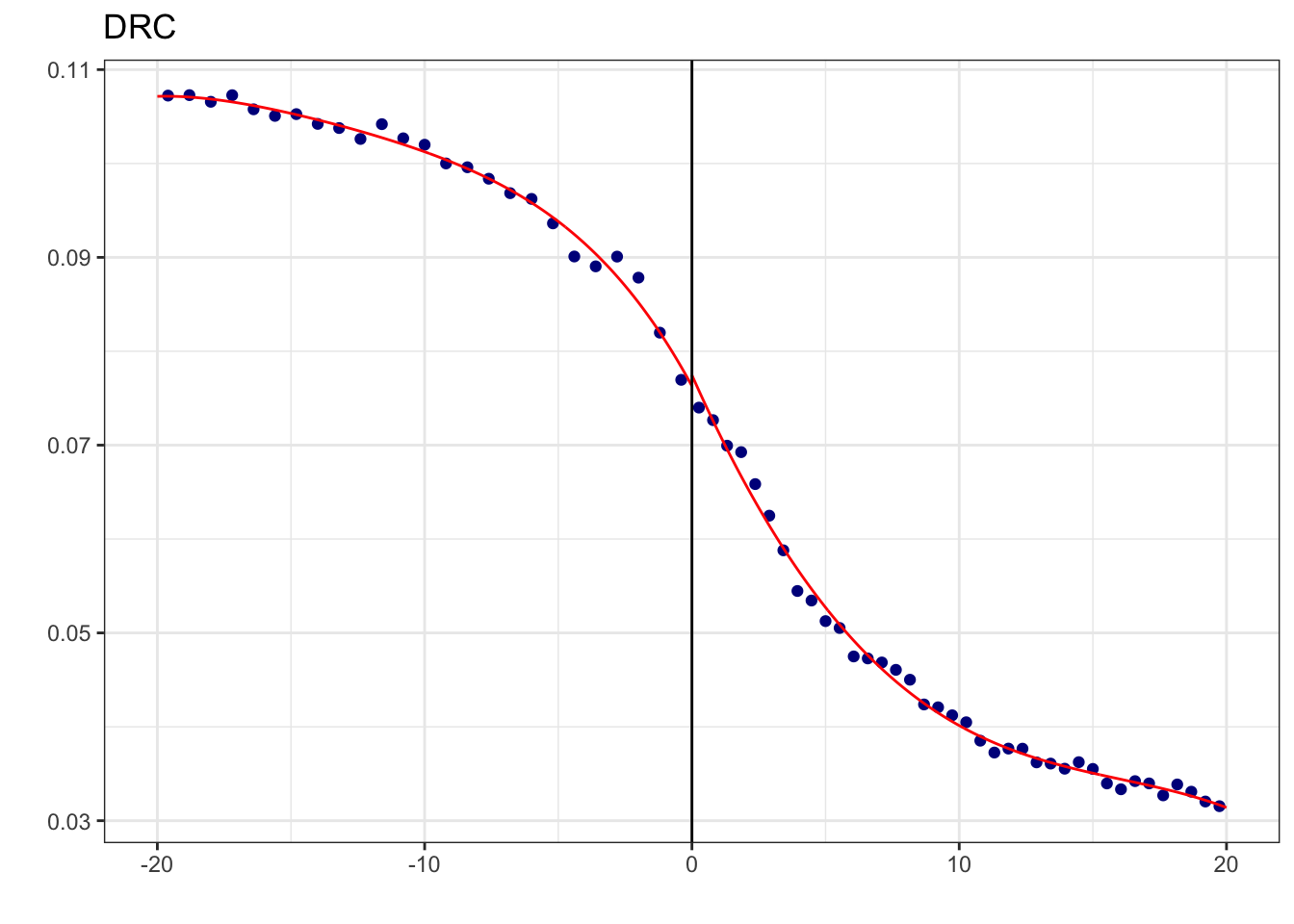

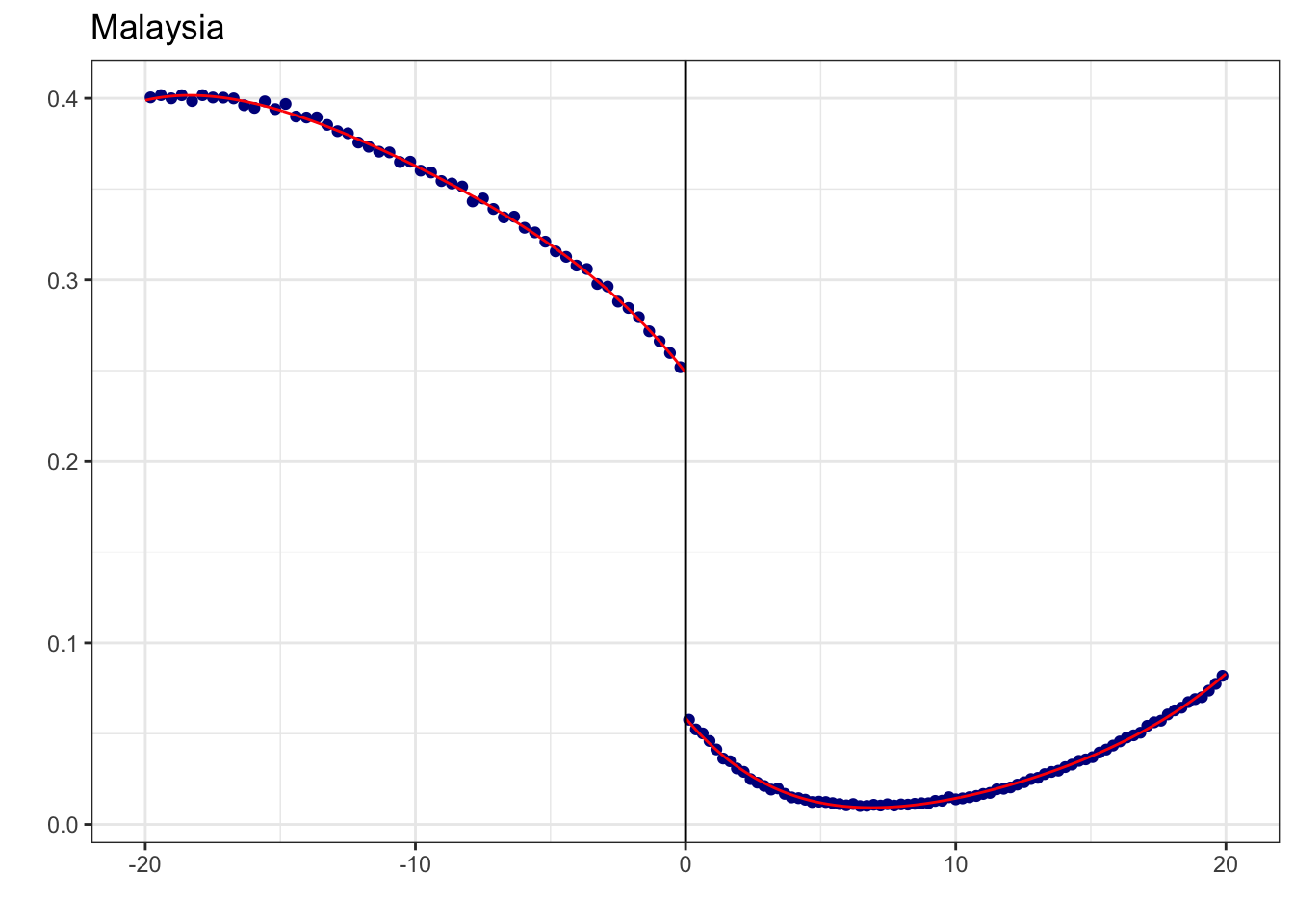

8. Generate county level discontinuity plots

# Create list to store plots
plot_list <- list()

# Loop across 6 countries and plot
for (country_name in unique(sim_data$country)) {
  df_country <- sim_data %>% filter(country == country_name)

 p <- rdplot(
      y = df_country$deforest,
      x = df_country$distance,
      c = 0,
      binselect = "es",
      title = paste(country_name),
      x.label="", y.label = "")

 p <- p$rdplot +
     labs(x=" ",y="")

  plot_list[[country_name]] <- p  # Store each plot in the list
  }
